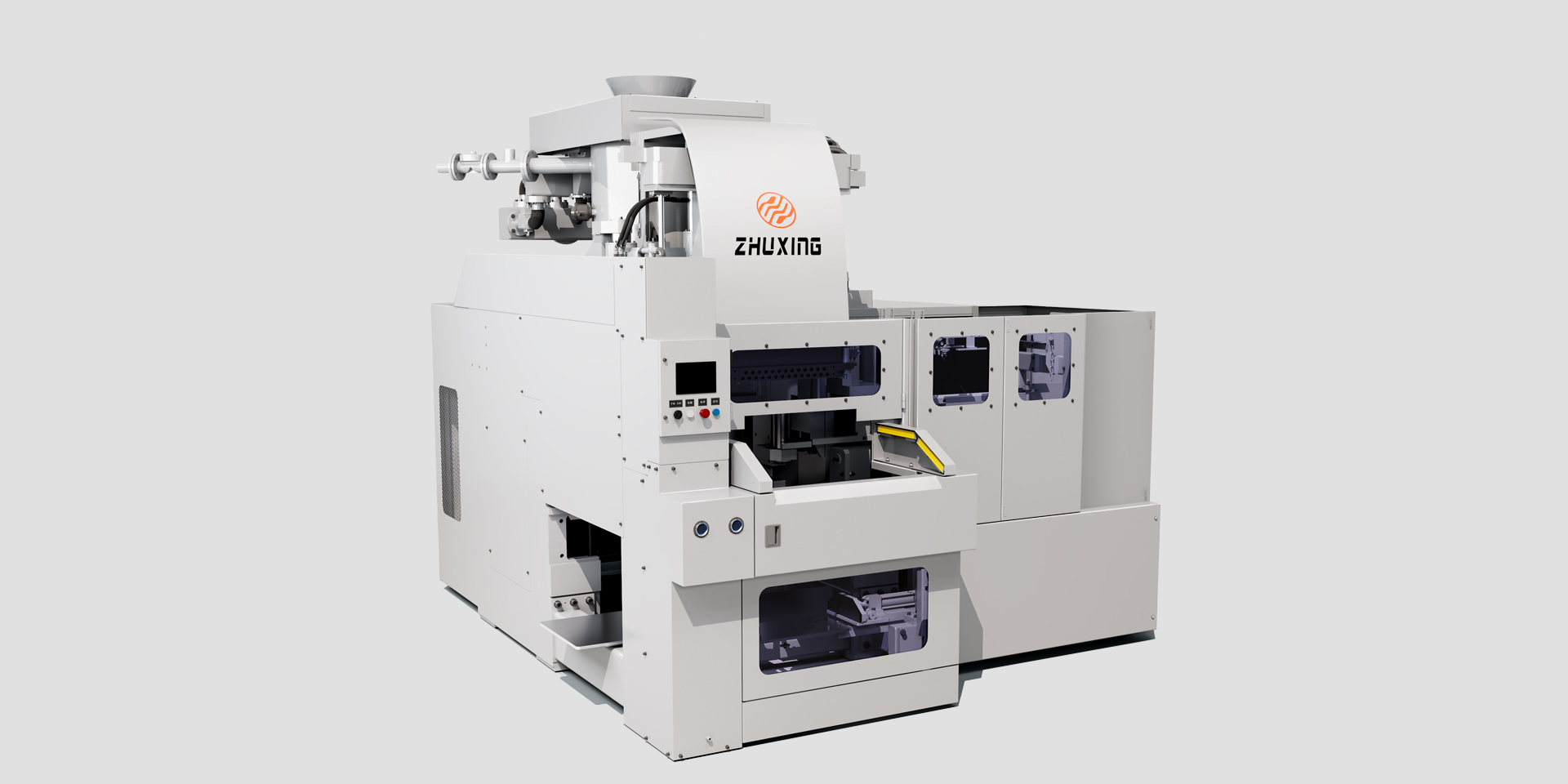

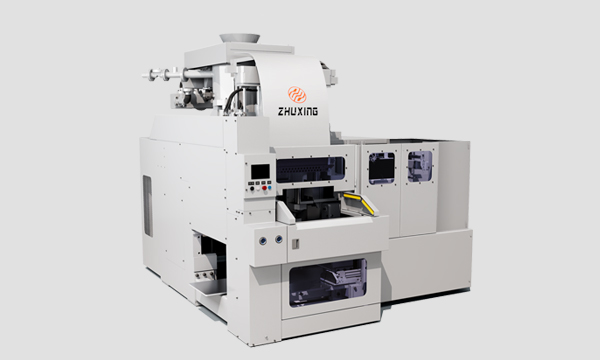

The FBO molding machine perfectly combines Top blow sand and horizontal parting, with significant advancements in molding technology closely aligned with casting processes, ensuring comprehensive production of high-quality castings. It is suitable for various complex products such as valve bodies, casings, water purmps, and wheel hubs.
•The top-down Top blow sand method ensures compact and uniform sand molds.
•The equipment has a compact structure, tightly integrating numerous complex and precise components, thereby saving floor space.
•Slide-out flask ensures safe and convenient core handling.
•The Top blow sand method expands the adaptability to different sand properties, allowing even simple sand types to produce high-precision molds.
| Model | FBO-06 | FBO-07 | FBO-08 |
| Mold size （mm ） | 610×508 | 700×600 | 810*710 |
| Mold height（mm） （3-stage setting） | 130~200 | 180~250 | 230~300 |
| Molding process | Top Blow＋Squeeze | ||
| Moldingspeed （Excluding core set time） | 133 molds/hour（27sec/mold） | 100molds/hour（36sec/mold） | 80molds/hour（45sec/mold） |
| The size of the sand box can be adjusted appropriately according to the user's demand. The moulding speed varies according to the outdoor temperature, air supply and extrusion pressure. | |||
